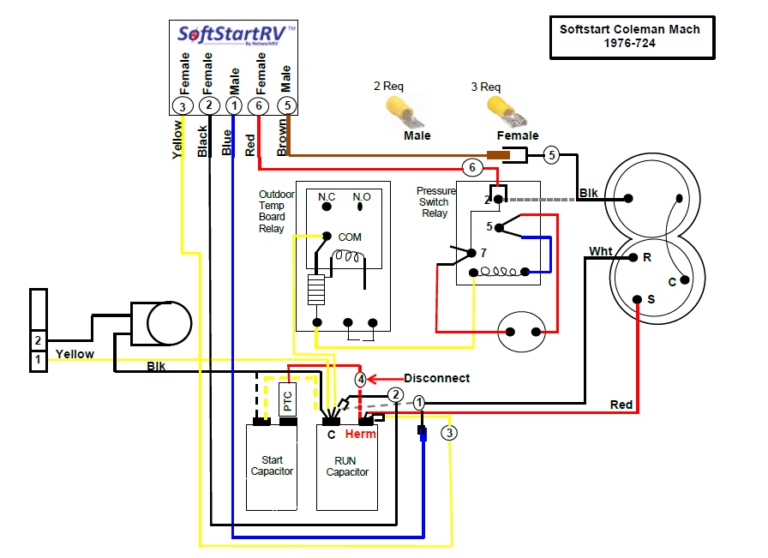

Coleman Mach Soft Start Kit Installation Instructions. Coleman Mach 1976A518 SoftStartRV Mach 1, 3, 3+, 10, 15 high profile models Wiring diagram A Coleman AC may be factory configured four different ways as shown in the factory diagram above 8333A9021/8335-9021/9333-9021 Hard Start Kits Installation Instruction: Download: 8330A731/8530A731 Ceiling Assembly

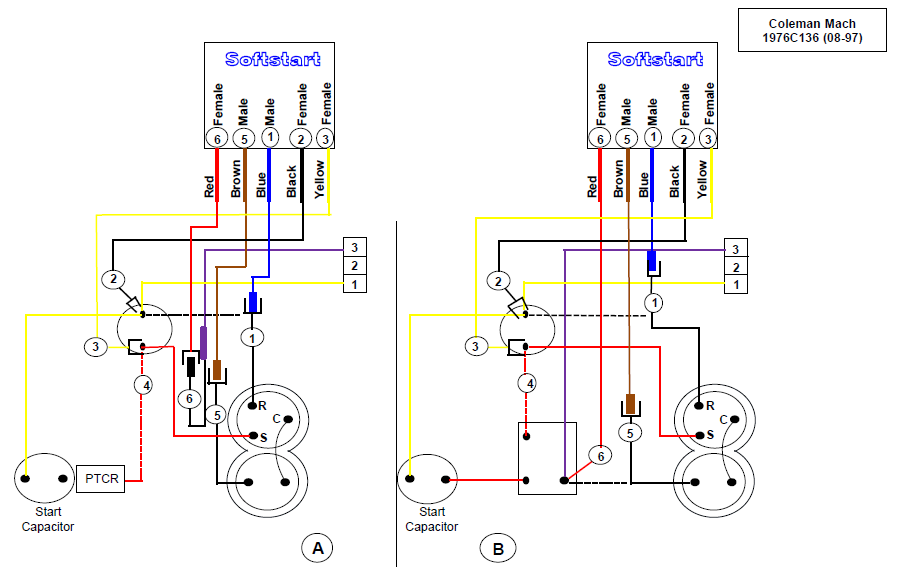

•SoftStartRV installs the same way irrespective of the configuration used in your air conditioner The dash outlined block on the left where EasyStart is connected shows a PTCR and start capacitor

Coleman Mach 1976A518 SoftStartRV

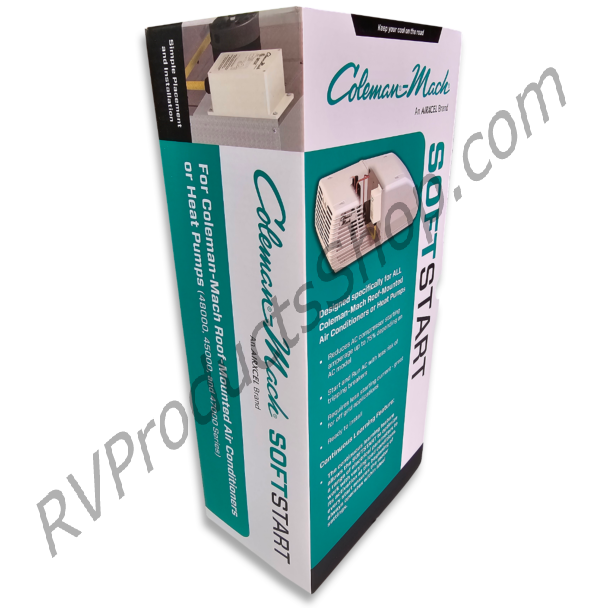

47103A4051 240 VAC EXPORT MACH 8 SOFT START KIT Installation Instruction: Download: The new Coleman Mach Soft Start is made by Coleman Mach and designed for Coleman Mach Air Conditioning units This video covers the installation of two Coleman-Mach brand aftermarket soft start kits on our 48000 series Coleman-Mach AC and Heat Pump.

ColemanMach COLEMANMACH SOFT START KIT Jim the Boat Guy. WARNING - ELECTRIC SHOCK HAZARD: Insure that all roof unit electrical power has been turned OFF prior to beginning installation of the soft start assist The dash outlined block on the left where EasyStart is connected shows a PTCR and start capacitor

Coleman Mach 3 Installation Instructions. This video covers the installation of two Coleman-Mach brand aftermarket soft start kits on our 48000 series Coleman-Mach AC and Heat Pump. How to properly install the Coleman-Mach aftermarket soft start into an existing Coleman-Mach air conditioner
